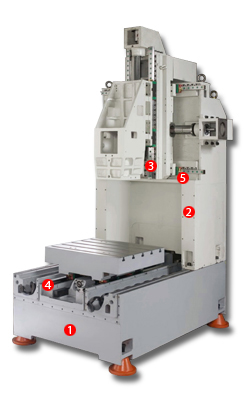

- Closed Bridge Type- High Speed CNC Graphite Machining Center.
- Patent design on its structure- super structural rigidity combined with advanced technologies
Patent Number :M270868.
|
 |
 |
- Exclusive base width design unique in the world.
- One piece fabricated design with “Closed bridge construction”.
- Heavy duty roller-type linear guideways.
- Loading capacity 3.5~6 times up.
- The best support ratio on X-axis pan.
|
| |
|
| STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
- Graphite Dust Suction & Filtration System (GDSFS).
- Spindle oil cooler.
- Umbrella type 16 tools ATC.
- Safety guard.
- Heat exchanger.
- Automatic power off system.
- Spindle air blast while tool unclamping.
- Work table & T nut.
- Work lamp.
- Indicating lamp.
- Tool box & Tools.
|
- Swing arms ATC-24 tools
(cylindrical cam & sensor type).
- Variable spindle speed required from 10000 to 42000RPM.
- Spindle with HSK63A Interface
(Spindle and standard ATC).
- European plate & life-up type chip conveyor.
- Extra air/coolant gun connection.
- 4the axis rotary table Technology(RTT).
- Coolant through spindle packages-20 bars
(CTS system).
- Automatic tool length measurement.
- Digital servo motor & drive for X,Y,Z axes:
[3/3/4-kw].
- Optical liner encoder.
- Oil skimmer.
|
| |
|
|
MODEL |
UNIT |
EM-321G |
CM-565G |
CM-1065G |
X axis travel |
mm(in) |
|
500
(19 11/16") |
1000
(39 3/8") |
Y axis travel |
mm(in) |
200(7 1/4") |
600(23 5/8") |
600(23 5/8")
|
Z axis travel |
mm(in) |
100(3 7/8") |
500(19 11/16") |
500(19 11/16") |
Distance between working table & spindle nose |
mm(in) |
100~300
(3 7/8"x 11 11/16") |
150~650
(5 7/8 x 25 2/5) |
150~650
(7 1/4" x 27 1/2") |
Table Dimension (XxY) |
mm(in) |
400 x 240
(15 5/8" x 9 1/4") |
700x600
(27 1/2x23 5/8) |
1200x600x2
(47 1/4" x 23 5/8") |
T slot W1xH1xW2xH2 |
mm(in) |
30 x 12 x 18 |
Taper of spindle nose |
|
ER 16 |
ISO-30 ( HSK-E40/OPTION) |
Spindle speeds |
r.p.m |
30000 |
40000 |
30000 |
30000 |
Maximum Tool Diameter |
mm(in) |
10 |
4 |
20 |
20 |
Maximum Tool Weight |
kg |
1 |
0.5 |
1 |
1 |
Maximum Weight for workpiece |
kg |
50 |
300 |
Spindle motor |
kw/HP |
22.5 |
1.5 |
5.5/7.5 |
Cutting feed rate |
mm/min
(in/min) |
1~5000 |
1~10000 |
|
m/min. |
5 |
24 |
24 |
No. of tools (ATC) |
pcs |
2~8 |
16(24) |
16(24) |
X/Y/Z SERVO MOTOR |
kw |
0.4/0.4/0.4 |
2/2/2 |
2/2/2 |
Air source |
kg/cm2 |
7(100) |
Machine dimension (WxDxH) |
mm(in) |
1100 x 900 x 1800 |
2300 x 2100 x 3100 |
2800 x 2400 x 3100 |
Machine weight |
≒kgs
(lbs) |
≒1000 |
≒6800 |
≒7500 |
Controller |
|
PC-Based |
Mitsubishi/ Fanuc/PC-based/Siemens |
*All specifications and design are subject to change without prior notice. |
|
|
|
|
